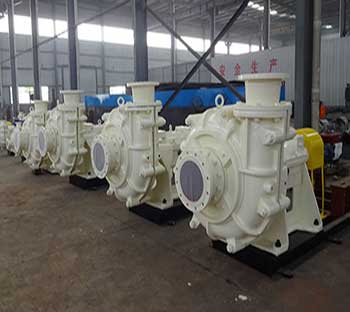

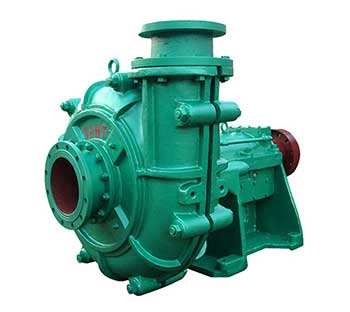

ZJA, ZJLA, D series slurry pump is axial suction, single stage single suction, bracket (suspension) centrifugal structure, in the form of the structure is divided into horizontal (ZJA, type D) and vertical (ZJLA type). This series of pumps in the hydraulic design and structural design of innovative energy-saving, flow components with strong corrosion resistance, strong abrasion of Gog wear-resistant alloy casting, with high efficiency and energy saving, wear and corrosion resistance, small vibration, low noise, reliable operation, long service life, maintenance is convenient wait for a characteristic. Widely used in coal, metallurgy, electric power and other industries, used for transporting the containing solid particles of the corrosive and abrasive slurry. The maximum weight concentration of the solid-liquid mixture is 45%-60%, according to the needs of users, can be more material with.
The pump shell (casing) for single-layer shell structure, bracket (suspension) by dilute oil lubrication form; seal full use of mechanical seal, mechanical seal with flushing water mechanical seal and flushing water mechanical seal two kinds of forms.
The main technical parameters of ZJA series slurry pump
| Type | Allpwable max.power of ass.motor(kw) | Clear water performan | Partical max.size handled occasionally (mm) | Pump weight (kg) | ||||
Capacity (m³/h) | Head (m) | Speed (r/min) | Max.eff. (%) | (NPSH)r (m) | ||||
| 40ZJA-I-A17 | 7.5 | 4.5-23.4 | 9.1-44.6 | 1400-2900 | 52.4 | 2.5 | 11 | 121（127） |
| 40ZJA-I-A19 | 15 | 8-34.9 | 12.8-57.1 | 1430-2930 | 58.8 | 1.3 | 11 | 173 |
| 50ZJA-I-A33 | 18.5 | 12-54 | 7.7-42.5 | 700-1480 | 42.1 | 2.9 | 13 | 537（545） |
| 50ZJA-I-A46 | 55 | 23-94 | 17.9-85.8 | 700-1480 | 44.7 | 1.4 | 14 | 1082（992） |
| 50ZJA-I-A50 | 90 | 27-111 | 22.3-110.7 | 700-1480 | 45.1 | 3.0 | 13 | 1378 |
| 65ZJA-I-A27 | 11 | 20-71 | 6.0-28.2 | 700-1460 | 61.5 | 1.8 | 19 | 500（508） |
| 65ZJA-I-A30 | 15 | 23-79 | 7.4-34.8 | 700-1460 | 63.5 | 2 | 19 | 504（512） |
| 80ZJA-I-A33 | 37 | 43-174 | 8.0-43.2 | 700-1480 | 65.7 | 2.3 | 24 | 973（919） |
| 80ZJA-I-A36 | 45 | 46-190 | 9.6-51.4 | 700-1480 | 67.7 | 2.5 | 24 | 980（926） |
| 80ZJA-I-A39 | 55 | 57-189 | 12.4-60.7 | 700-1480 | 64.7 | 2.4 | 24 | 1042（952） |
| 80ZJA-I-A42 | 75 | 61-204 | 14.4-70.4 | 700-1480 | 66.7 | 2.5 | 24 | 1053（963） |
| 80ZJA-I-A52 | 160 | 51-242 | 22.1-109.8 | 700-1480 | 56.3 | 2.1 | 21 | 1465（1378） |
| 100ZJA-I-A33 | 45 | 56-22 | 8.2-41.6 | 700-1480 | 69.6 | 1.8 | 32 | 1003（949） |
| 100ZJA-I-A36 | 55 | 61-245 | 9.7-49.5 | 700-1480 | 71.6 | 2.0 | 32 | 1010（956） |
| 100ZJGA-I-B42 | 75 | 45-205 | 12.6-70.7 | 700-1480 | 63.2 | 1.8 | 18 | 1080（990） |
| 100ZJA-I-B42 | 90 | 83-365 | 12.7-66.8 | 700-1480 | 71.6 | 2.5 | 40 | 1085（1031） |
| 100ZJA-I-A39 | 75 | 61-255 | 12.6-61.0 | 700-1480 | 69 | 2.4 | 35 | 1064（1010） |
| 100ZJA-I-A42 | 90 | 66-275 | 14.7-70.8 | 700-1480 | 71 | 2.5 | 35 | 1075（1021） |
| 100ZJA-I-A46 | 132 | 79-331 | 17.3-84.8 | 700-1480 | 67.6 | 2.3 | 34 | 1461（1374） |
| 100ZJA-I-A50 | 160 | 85-360 | 20.5-100.2 | 700-1480 | 69.6 | 2.5 | 34 | 1475（1388） |
| 150ZJA-I-C42 | 132 | 142-550 | 12.1-62.8 | 700-1480 | 77.1 | 2.2 | 69 | 1605（1518） |
| 150ZJA-I-A48 | 75 | 111-442 | 8.7-39.7 | 490-980 | 75.8 | 2.5 | 48 | 1728（1641） |
| 150ZJA-I-A50 | 75 | 115-460 | 9.5-43.1 | 490-980 | 76.8 | 2.5 | 48 | 1735(1648) |
| 150ZJA-I-A55 | 110 | 124-504 | 12.3-53.4 | 490-980 | 72.9 | 2.3 | 48 | 2019 |
| 150ZJA-I-A57 | 110 | 95-427 | 13.2-56.3 | 490-980 | 67.8 | 1.8 | 32 | 2023 |
| 150ZJA-I-C58 | 160 | 134-596 | 12.8-61.0 | 490-980 | 69.1 | 2.0 | 75 | 2063 |
| 150ZJA-I-A58 | 132 | 131-532 | 13.7-59.3 | 490-980 | 74.9 | 2.5 | 48 | 2033 |
| 150ZJA-I-A60 | 160 | 135-550 | 14.7-63.5 | 490-980 | 75.9 | 2.5 | 48 | 2203 |
| 150ZJA-I-A63 | 185 | 146-582 | 16.3-71.1 | 490-980 | 69.8 | 2.5 | 48 | 2211 |
| 150ZJA-I-A65 | 200 | 150-600 | 17.4-75.7 | 490-980 | 70.8 | 2.5 | 48 | 2223 |
| 150ZJA-I-A70 | 185 | 93-401 | 20.2-91.2 | 490-980 | 62.3 | 2.0 | 37 | 2245 |
| 150ZJA-I-A71 | 220 | 142-552 | 21.8-93.8 | 490-980 | 69.8 | 2.4 | 48 | 2264 |
| 200ZJA-I-A58 | 185 | 211-841 | 13-57.9 | 490-980 | 82.5 | 2.5 | 62 | 2214 |
| 200ZJA-I-A60 | 185 | 218-870 | 13.9-62 | 490-980 | 83.5 | 2.5 | 62 | 2223 |
| 200ZJA-I-A63 | 250 | 228-921 | 15.4-67.6 | 490-980 | 78.6 | 2.5 | 62 | 2311 |
| 200ZJA-I-A65 | 250 | 235-950 | 16.4-72 | 490-980 | 79.6 | 2.5 | 62 | 2323 |
| 200ZJA-I-A68 | 315 | 199-948 | 18.3-81.5 | 490-980 | 74.6 | 2.8 | 56 | 2453 |
| 200ZJA-I-A70 | 315 | 205-976 | 19.4-86.4 | 490-980 | 75.6 | 2.8 | 56 | 2465 |
| 200ZJA-I-A73 | 355 | 219-876 | 21.6-97.5 | 490-980 | 73.1 | 3.0 | 56 | 3056 |
| 200ZJA-I-A75 | 355 | 225-900 | 22.8-102.9 | 490-980 | 74.1 | 3.0 | 56 | 3070 |
| 200ZJA-I-A85 | 560 | 221-907 | 32-133.7 | 490-980 | 70.5 | 2.8 | 54 | 4110 |
| 250ZJA-I-A60 | 280 | 276-1153 | 13.1-60.5 | 490-980 | 73.5 | 2.8 | 72 | 2991 |
| 250ZJA-I-A63 | 315 | 290-1211 | 14.4-66.7 | 490-980 | 75.9 | 3.0 | 72 | 3008 |
| 250ZJA-I-A65 | 315 | 299-1249 | 15.4-71 | 490-980 | 76.9 | 3.0 | 72 | 3020 |
| 250ZJA-I-A68 | 450 | 272-1342 | 17.1-80.1 | 490-980 | 73.5 | 2.7 | 72 | 3432 |
| 250ZJA-I-A70 | 450 | 280-1381 | 18.1-84.9 | 490-980 | 74.5 | 2.9 | 72 | 3446 |
| 250ZJA-I-A73 | 500 | 292-1441 | 19.7-92.4 | 490-980 | 76.5 | 3.0 | 72 | 3446 |
| 250ZJA-I-A75 | 560 | 300-1480 | 20.8-97.5 | 490-980 | 77.5 | 3.0 | 72 | 3480 |
| 250ZJA-I-A78 | 630 | 415-1796 | 21.1-102.5 | 490-980 | 71.5 | 3.2 | 76 | 4474 |
| 250ZJA-I-A80 | 710 | 354-1416 | 26.7-114.0 | 490-980 | 73.5 | 3.4 | 76 | 4490 |
| 250ZJA-I-A83 | 800 | 367-1469 | 28.7-122.7 | 490-980 | 75.5 | 3.5 | 76 | 4514 |
| 250ZJA-I-A85 | 800 | 376-1504 | 30.1-128.7 | 490-980 | 76.5 | 3.5 | 76 | 4530 |
| 250ZJA-I-A90 | 450 | 378-1374 | 22.3-82.4 | 400-730 | 73.8 | 3.4 | 69 | 4980 |
| 250ZJA-I-A96 | 560 | 403-1466 | 25.4-93.7 | 400-730 | 77.8 | 3.5 | 69 | 5035 |
| 250ZJA-I-A103 | 560 | 402-1573 | 29.7-110.5 | 400-730 | 74.5 | 2.8 | 69 | 5085 |
| 300ZJA-I-A56 | 250 | 395-1568 | 9.7-46.0 | 490-980 | 80.9 | 3.5 | 96 | 3030 |
| 300ZJGA-I-A65 | 500 | 589-2166 | 13.8-66.2 | 490-980 | 77.4 | 3.7 | 92 | 3531 |
| 300ZJA-I-A70 | 630 | 635-2333 | 16.0-76.8 | 490-980 | 80.4 | 3.9 | 92 | 3560 |
| 300ZJA-I-A85 | 450 | 477-1742 | 18.9-71.3 | 400-730 | 79.8 | 3.8 | 85 | 4965 |
| 300ZJA-I-A90 | 560 | 505-1844 | 21.2-79.9 | 400-730 | 82.8 | 3.9 | 85 | 5005 |
| 300ZJA-I-A95 | 400 | 441-1735 | 13.8-58.8 | 300-590 | 78.1 | 3.0 | 88 | 5220 |
| 300ZJA-I-A100 | 450 | 464-1826 | 15.3-65.2 | 300-590 | 81.1 | 3.0 | 88 | 5265 |
| 300ZJA-I-F100 | 560 | 526-2339 | 14.9-62.8 | 300-590 | 77.6 | 4.4 | 96 | 5465 |
