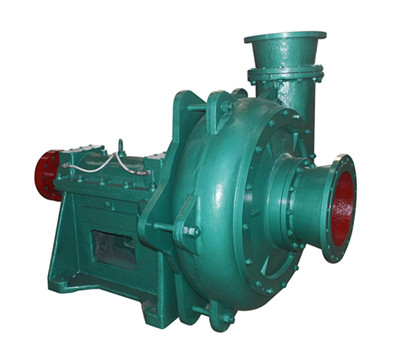

ZJA, ZJLA, D series slurry pump is axial suction, single-stage single-suction, bracket (suspension) centrifugal structure, according to the structure is divided into horizontal (ZJA, D type) and vertical (ZJLA) two kinds. This series of pump on the hydraulic design, structural design innovation and energy saving, flow components with strong corrosion resistance, strong abrasion and high wear-resistant alloy casting, has high efficiency and energy saving, corrosion resistance, wear-resisting, little vibration, low noise, reliable operation, long service life, maintenance is convenient wait for a characteristic, can be widely used in coal, metallurgy, electric power and other industries, used to transport corrosive medium containing solid particles, abrasive slurry. The maximum weight of the solid-liquid mixture concentration of 45% to 45%, according to user needs, can be more material collocation.
Performance and Main Technical Datas of D Slurry Pumps
| Type | Allowable max.power of ass.motor (kw) | Clear water performance | Particle max.size handled occasionally (mm) | Pump weight (kg) | ||||
Capacity (m³/h) | Head (m) | Speed (r/min) | Max.eff. (%) | (NPSH)r (m) | ||||
| 25D-A15 | 5.5 | 4.4-19.3 | 6.2-34.4 | 1390-2900 | 41.8 | 1.3 | 8 | 89 |
| 25D-A25 | 4 | 4.7-19.9 | 3.3-21.6 | 700-1440 | 38 | 3.3 | 5 | 107 |
| 40D-B20 | 15 | 7.9-37.1 | 10.7-57.5 | 1400-2930 | 53 | 0.9 | 7 | 160 |
| 40D-A25 | 45 | 16.8-74.7 | 13.7-88.6 | 1400-2950 | 42.5 | 2.6 | 9 | 185 |
| 50D-A30 | 18.5 | 16-78 | 6.1-36.3 | 700-1460 | 48.5 | 0.8 | 16 | 210 |
| 50D-A40 | 30 | 16-76 | 9.5-51.7 | 700-1470 | 45.1 | 1.2 | 10 | 320 |
| 65D-A30 | 22 | 22-99 | 7.0-35.6 | 700-1470 | 54.6 | 2.2 | 19 | 260 |
| 65D-A40 | 55 | 34-159 | 12.2-63.2 | 700-1480 | 62.1 | 2.1 | 16 | 490 |
| 80D-A30 | 30 | 36-154 | 8.4-37 | 700-1480 | 68 | 2.5 | 16 | 460 |
| 80D-A36 | 37 | 41-167 | 8.9-47.1 | 700-1480 | 62.4 | 1.5 | 16 | 480 |
| 100D-A35 | 75 | 77-323 | 8.8-45.9 | 700-1480 | 73.2 | 1.9 | 42 | 550 |
| 100DG-B38CS | 90 | 40-171 | 18.5-94.1 | 700-1480 | 58.7 | 3.4 | 18 | 1420 |
| 100D-B40 | 75 | 61-268 | 12.0-61.0 | 700-1480 | 70.4 | 1.7 | 29 | 620 |
| 100DG-B45C | 90 | 53-233 | 13.1-66.6 | 700-1480 | 53.6 | 3.6 | 26 | 1290 |
| 100D-A45B | 90 | 41-219 | 12.1-76.4 | 700-1480 | 51.8 | 2.4 | 24 | 800 |
| 100D-A45 | 90 | 47-228 | 14.8-83.5 | 700-1480 | 58.7 | 2.2 | 22 | 810 |
| 100D-A60 | 220 | 71-305 | 29.1-174.0 | 700-1490 | 57.9 | 2.4 | 18 | 890 |
| 150D-A40 | 132 | 122-503 | 11.2-61.2 | 700-1490 | 73.1 | 2.6 | 40 | 830 |
| 150DG-A50 | 55 | 62-279 | 9.3-44.6 | 490-980 | 65.7 | 2.1 | 30 | 1470 |
| 150D-B55 | 132 | 139-630 | 11.3-53.7 | 490-990 | 78.1 | 2.3 | 56 | 1540 |
| 150D-A60 | 450 | 156-704 | 28.9-150 | 700-1480 | 70.7 | 2.1 | 39 | 1657 |
| 200D-A45 | 90 | 138-638 | 5.7-30.4 | 490-980 | 80.8 | 2 | 51 | 1750 |
| 300D-A60 | 400 | 580-2403 | 8.9-53.1 | 490-989 | 81.1 | 4.3 | 96 | 2790 |
| 350D-A78 | 450 | 720-2826 | 7.5-49.8 | 300-730 | 78 | 3.5 | 130 | 3700 |
