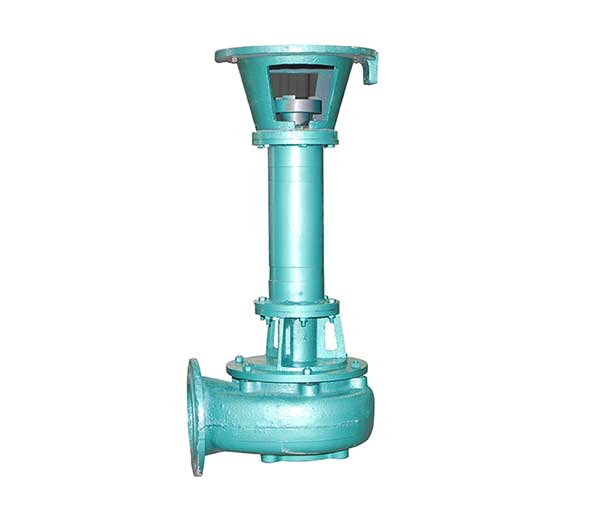

Vertical mud pump with high pressure fresh water pump of water conservancy digging filling unit, dredging and land reclamation operations, can also be many sets of vertical and horizontal pump mud pump series pump group.
Scope of application: sedimentation tank, the fish ponds bait-casting, lake, river sand, dredging and embankment; Low-lying land reform; Sand carrier unloading sand. Sediment more water, less smoke sediment on the beach or land, even if time does not affect the use, do not need to be empty.
The pump flow components with high wear resistant cast iron and chromium alloy, the user can choose according to need material.
Multi-purpose sediment water pump performance parameters
Type | Speed | Capacity | Head | Shaft power | Eff.η | Form a complete set of motor | |
r/min | m³/h | m | kw | % | Type | power(kw) | |
3PNLF-11 | 1470 | 100 | 11 | 4.5 | 72 | Y132M-4 | 7.5 |
4PNSL-35 | 1470 | 150 | 35 | 22 | 65 | Y220L-4 | 30 |
4PNSL(F)-15 | 1470 | 150 | 15 | 9 | 72 | Y160L-4 | 15 |
6PNSL(F)-18 | 1470 | 280 | 18 | 20 | 72 | Y180L-4 | 22 |
8/6PNSL(F)-18 | 1470 | 350 | 18 | 25 | 72 | Y200L-4 | 30 |
8PNSL(F)-16 | 1470 | 420 | 16 | 27 | 72 | Y225S-4 | 37 |
